Whilst you can effectively have any size you want within reason, in the print industry the most common system uses the ISO standard for paper sizes.

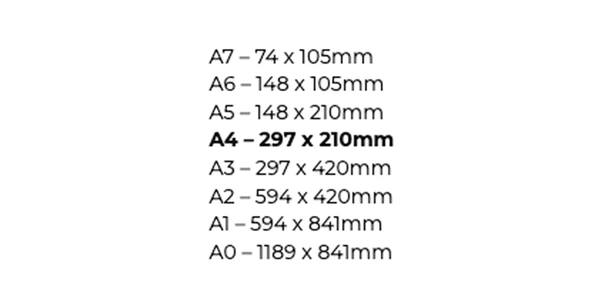

The A Series
The ‘A’ series which includes A4 (the standard size for a letterhead) is the most commonly known and widely used ISO standard. As the ‘A’ number goes down the sheet size goes up with measurements given in millimetres.
What makes this system so clever is that all the paper sizes have the same proportions; with the longest side being half the length of the shortest side on the next size of paper down. This has 2 benefits (apart from being easy to remember); the first is that if you fold or cut a sheet of A3 in half you will get a finished size of A4.
The second property is that the paper sizes have the same aspect ratio which is particularly useful when increasing or reducing artwork. For example you can use the same artwork for an A5 flyer and an A4 poster (provided the image resolution is OK when increased in size), saving you time reproducing the same piece of artwork for two different jobs.
Using the ‘A’ series also enables you to maximise your print budget and reduce waste as you will use the paper as economically as possible. If your job is larger than A4 (210mm x 297mm) but not as large as A3 (297mm x 420mm), for example 297mm X 297mm we still have to use an A3 sheet of paper and the part not used is cut off and sent for recycling.
Dispensers and display frames for leaflets, brochures and posters also use these standard sizes. Your printed item will therefore look smart and sit neatly if you decide to use it in a display in your office or at an exhibition. If you send your printing to a third party to display you also have more chance of it fitting their system too.
Finally envelopes use a measuring system that dovetails with these paper sizes so again, you will ensure that once printed it can be sent in the post easily and economically.
Needless to say there are always exceptions to the rule in some industries particularly and we therefore print all shapes and sizes to meet your bespoke printing requirements so give us a call if you need help.
The SRA Series
The SRA Series is the ISO paper size standard that is used by printers to produce the finished A Series of paper sizes.
If you need a finished job of A3, a printer uses a sheet size of SRA3 or alternatively an SRA2 sheet, out of which he would get 2 A3’s.
This slightly larger paper size allows room for any bleed on the job as well as colour bars that printers use to ensure that the finished printed sheets are the correct colour. This slightly larger sheet size also allows for an edge that the print press can grip onto as the sheets of paper pass through the it.
It is very unlikely that you will need to know these paper sizes unless you are involved on the printing side of the industry.
The RA Series
The RA Series is another alternative ISO paper size, again designed to produce the finished sheet sizes of the A Series but for jobs that do not have any bleed on them. It was predominately used for printing single colour stationery without bleed but today his series is not widely used.
The B Series
The B Series is a less well known ISO standard for paper sizes that is used by printers to print jobs that do not quite fit onto a standard SRA size. The most common use of this paper size if for folders with pockets that do not economically fit onto an SRA sheet size. Again this isn’t a series that is often sited but it also allows you to produce over size A4 documents in an economical fashion that can make the finished job look and feel a little different. The B series is used in specific industries that require slightly larger finished jobs.
The SRA Series Dimensions
SRA0 – 900 x 1280 mm
SRA1 – 640 x 900 mm
SRA2 – 450 x 640 mm
SRA3 – 320 x 450 mm
SRA4 – 225 x 320 mm
The RA Series Dimensions
RA0 – 860 × 1220 mm
RA1 – 610 × 860 mm
RA2 – 430 × 610 mm
RA3 – 305 × 430 mm
RA4 – 215 × 305 mm
The B Series
B0 – 1000 x 1400 mm
B1 – 700 x 1000 mm
B2 – 500 x 700 mm
B3 – 350 x 500 mm
B4 – 250 x 350 mm
B5 – 175 x 250 mm
B6 – 125 x 175 mm
The Imperial System
There are however, some industries and market sectors that still use the old Imperial system for paper sizes. These sizes are measured in inches and have their own unique names and a some what random relationships between each other; the most popular sizes are highlighted below:
Needless to say this would take a lot more remembering!!
Executive 7¼ x 10½
Quarto 8 x 10
Letter 8½ x 11
Legal 8½ x 14
Ledger (Tabloid) 11 x 17
Foolscap 13½ x 17
Foolscap, oblong double 13½ x 34
Pinched Post 14½ x 18½
Crown 15 x 20
Post 15¼ x 19
Large Post 16½ x 21
Double Foolscap 17 x 27
Demy 17½ x 22½
Medium 18 x 23
Double Post 19½ x 30½
Royal 20 x 25
Double Crown 20 x 30 (Theatre Industry)
Super Royal 20½ x 27½
Double Large Post 21 x 33
Imperial 22 x 30
Double Demy 22½ x 35
Elephant 23 x 28
Double Medium 23 x 36
Double Royal 25 x 40 (London Underground & British Rail)
Atlas 26 x 34
Quad Foolscap 27 x 34
Quad Crown 30 x 40 (Cinema Industry)
Double Imperial 30 x 44
Quad Demy 35 x 45
Quad Medium 36 x 46
Double Quad Crown 40 x 60
Again, whilst it is fun to know about these sizes, unless you are involved in industries that use them, it is unlikely that you will ever need them. The exception to this is the Letter size (8 1/2 x 11?) which is used in North America as their standard size comparable to our A4 and is the default on nearly all document producing software such as Microsoft Word. Unless changed in the ‘Page’ settings, using this size to produce your documents will result in a wider shorter image area.
Yet another system used for Large Format paper sizes, again using imperial measurements, is used in the
Billboard industry
4 sheet 40” x 60”
6 sheet 1200mm x 1800mm
12 sheet (3 x 4 sheet) 60” x 120”
16 sheet (4 x 4 sheet) 80” x 120”
32 sheet (8 x 4 sheet) 120” x 160”
48 sheet (12 x 4 sheet) 120” x 240”
64 sheet (16 x 4 sheet) 120” x 320”
96 sheet (24 x 4 sheet) 120” x 480”
